ムーアの法則の限界 Limitations of Moore’s Law

“ムーアの法則”に限界が見えてきました。 ムーアの法則とは、1965年にインテルの共同創始者であるゴードン・ムーア氏が「一つのチップ上の半導体の集積率は18カ月ごとに倍増する」として半導体技術の進化を予測した指標です。過去50年の間、半導体はこの予測の通り微細化・集積化を続けコンピューティングの発展を規定してきました。近年のAIの台頭もこの計算機の性能向上の恩恵に寄るところが大きいと言えます。しかし近年、いよいよ半導体の微細化・集積化には物理的、エネルギー効率的な限界が近づいています。現代の先端半導体プロセッサは5nmプロセス技術で製造されています。この先も集積化技術は進展していくと思われますが、これまでのような指数関数的な性能向上は期待できなくなっています。また、消費電力の問題はより大きな課題として顕在化しています。半導体の技術革新による省電力化は約10年前から下げ止まりになっており、経済産業省によると2050年には総消費電力の約60%をICT機器が占めるに至ると予測されています。このような状況の中、更なるAIの進化の為には、従来とは全く異なる新しい発想でのコンピューターの開発、特に動作時の超低消費電力化や待機電力低減を実現する「省エネルギー」技術革新が喫緊の課題となっています。

The limits of Moore’s Law are insight. Moore’s Law is an index used by Gordon Moore, the co-founder of Intel Corporation, to predict the evolution of semiconductor technology, saying, “The number of transistors on a microchip doubles every 18 months.” Over the last 50 years, semiconductors have continued to miniaturize and become integrated as predicted, shaping computing progress. The recent rise of artificial intelligence (AI) may also depend considerably on the benefits of improving computer performance. In recent years, however, the miniaturization and integration of semiconductors have shown signs of approaching their physical and energy efficiency limits. Modern advanced semiconductor processors are manufactured with 5 nm process technology. Although integrated technology will continue advancing, exponential performance improvement is becoming hard to expect. Power consumption emerges as a serious issue. In fact, energy saving through the technological innovation of semiconductors has remained stagnant for about a decade. The Ministry of Economy, Trade and Industry projects that information-communication technology equipment will account for about 60% of the total power consumption by 2050. For AI to further evolve in this situation, there is a need to develop computers based on an entirely new concept. Particularly, the innovation of energy saving technologies achieving ultra-low power consumption and standby power reduction during operations is an urgent task.


Details of Project

従来型コンピューターの壁を越える研究 Research Crossing Barriers of Conventional Computers


This project aims to develop next-generation computers replacing conventional machines, that employ a new mechanism not using electron charges for transmitting and processing information. We will particularly focus on the “fluctuations” of living organisms and develop next-generation ultra-low power consumption computers based on the design guidelines for actively making use of noise, considered a “nuisance” in the past.

[1]スピントロニクス(マグノニクス)による超低消費電力コンピューター [1] Ultra-low power consumption computers based on spintronics

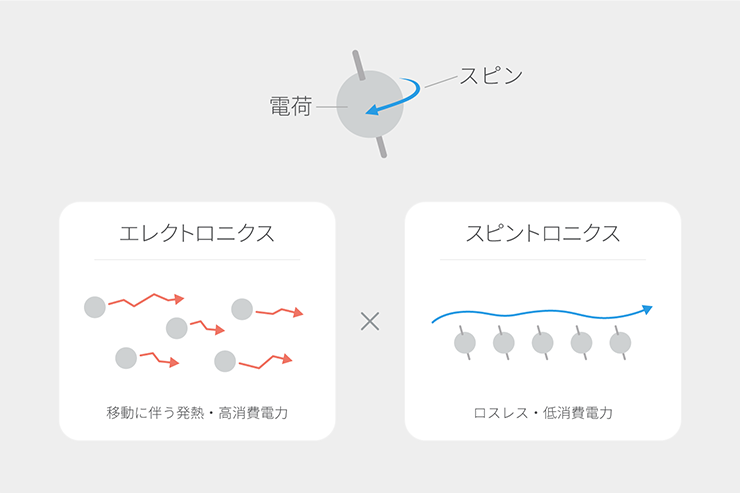

Existing electronic devices have used electric charge, a property of electrons and a source of electricity, to transmit and control information. Controlling the flow of electric charge (current), the “electronics” technology has supported the evolution of electronic devices. However, as Moore’s Law approaches its limits, attention is turning to another property of electrons, the intrinsic spin of the electron serving as the source of magnetism. Spin holds the potential to solve computer energy problems. Accordingly, research and development are actively promoted as the study of intrinsic spin, or “spintronics/magnonics,” worldwide.
In electronics (the study of electric current), the transmission and control of information involve the actual transportation of electrons. Heat generation is thus unavoidable combined with large energy loss. On the other hand, spin angular momentum transmission and control apply the phenomenon called spin wave. The angular momentum of electrons (a quantity representing the momentum of rotational motion) is transmitted as a wave, allowing information to be transmitted and controlled without transporting electrons. Consequently, zero heat is generated. Based on this property, spin is expected to be applied to next-generation ultra-low power consumption computers that can transmit and control information without heat loss. Our research team has already produced the world’s first high-temperature glass material for new spin wave elements. By maintaining and accelerating the advantage, we aim to solve the problem of power consumption of conventional computers, and develop highly reliable computers with innovative low power consumption.
Specifically, our research and development focus on spin wave elements using the magnetic garnet, known as a jewel, to develop brain-type computers (neuromorphic computing) mimicking the behavior of the human brain. We hope to apply the results of this project to quantum computing and reservoir computing by spin phase interference.

[2]ノイズを利用するという逆転の発想 [2] Reversed concept applying noise

本研究の特徴的なアプローチとして “確率共鳴”という現象を応用したスピン波素子の研究開発があります。確率共鳴とは、通常検出できないような微弱な信号に適度な雑音(ノイズ)を加えると、ある確率の下で反応が向上し感度よく検出されるようになる現象のことです。実は多くの生き物が感覚器や神経伝達において、この確率共鳴を利用していることが知られています。例えばある種のサメの実験では、ノイズとして弱い電流を流すことによって、より遠くのプランクトンを見つけて捕食できるようになることが観測されています。 確率共鳴は私たち人間を含む多くの生体が生来備え、巧妙に活用している現象なのです。
従来の工学では、ノイズは好ましくないものとして考えられ、それをいかに除去するかに最大限の努力が費やされてきました。しかし、本研究では逆転の発想で、これまで厄介者だった“ノイズ”を有用な役割をはたす存在として活用します。研究チームは “ばらつき”や“熱ゆらぎ”などのノイズを環境中のエネルギー源と捉え、積極的に活用出来る電子デバイスの設計・開発を目指しています。

A characteristic approach of this project is the research and development of spin wave elements by applying stochastic resonance. Stochastic resonance is a phenomenon in which when an appropriate amount of noise is added to a weak signal that cannot be detected under normal circumstances, the response to the signal improves at a certain probability, and the signal is detected with high sensitivity. In fact, many creatures are known to make use of such stochastic resonance in their sensory organs and neurotransmission. For example, a fish experiment found that sharks of a certain species transmit a weak electric current as noise to find and prey on plankton farther away. Many living organisms, including human beings, naturally possess and skillfully utilize the phenomenon.
In conventional engineering, noise is considered bad and every effort is made to eliminate it. However, this project applies the reversed concept of making use of the nuisance (noise) as something useful. Our research team takes noises such as fluctuations and thermal fluctuations as energy sources in the environment and aims to design and develop electronic devices that make good use of them.
Specifically, we aim to develop a brain-type (neuromorphic) element that can function at room temperature, induce spin fluctuations on magnetic thin films made of garnet (magnetic optical material), and electrically detect spin angular momentum (spin wave) by spin-orbit interaction. These achievements will be applicable to reservoir computing by spin wave calculation, spiking neurons, etc.


Values / Hopes

本研究プロジェクトが切り開く未来の可能性 Future Possibilities Created by This Project


Machine learning is based on a learning method called neural networks that mimic the functions of the human brain as its fundamental technology. Presently, the principal artificial neural network technology is realized on software. However, in existing machines, the memory for storing programs and the CPU executing them are separated due to their structure, and heat loss is enormous in large-scale and high-speed operations with the current integrated circuit technology, resulting in the need to disregard energy efficiency.
Brain-type elements operating at room temperature, the goal of this project, can establish functions equivalent to high-density and flexible interneuron connections without wiring by applying the spin wave phenomenon and can be mounted as a chip, making them suitable for integration. We hope that this project will lead to ultra-low power consumption and high-performance terminal devices indispensable for driving the future AI society.


Research outcome




Increasing power consumption is a serious issue as the amount of information processed by the exploding AI increases. The objective of this research is to create ultra-low energy consumption electronic devices by incorporating the low power consumption operating principles of living systems. As an example, we are conducting integrative research in various fields such as theoretical computation, material science, and device design and demonstration to develop devices that utilize fluctuations (noise or thermal fluctuation) in the environment. Solving NP-hard combinatorial optimization problems (COPs) such as the traveling salesman problem and the knapsack problem is expected to applied in a wide area not only communication services but also logistics, financial services, manufacturing processes, etc. An Ising machine is a computer specialized to solve the COPs, where the problems are converted into the interactions between spins and the solutions are obtained by searching for the ground state (minimum energy). In order to reach the true solution for the Ising machine, noise is used to escape from local energy minimum. Gaussian white noise is generally used to imitate random processes in nature, but colored noise (power spectral density: PS=fβ) exists in actual circuits and environments. We input various types of colored noise into the Ising machine and find the best noise promoting the development of the Ising Hamiltonian toward an optimal solution. Because the injection of red noise (β = −2) can effectively suppress random errors switching spin states and induce stochastic resonance, the optimal solution was efficiently found even under conditions with large noise. This research proposes improving the performance of Ising machines by effectively utilizing noise, which has traditionally been considered as an unwanted nuisance. It is expected to be applied for ultra-low energy consumption computers supported by the environment. Furthermore, we have proposed system models that efficiently utilizes noise such as multi-stable and over-damped systems, which improve the correct answer rate for hand-written digit patterns related to image recognition and associative memory, and reduce cost toward short time calculation and low power consumption.
Regarding the materials research, we have studied on spin glasses, which have many metastable states in free energy and spin fluctuations. Due to the magnetic interaction with randomness and frustration, spin glasses show a spin freezing state at low temperatures and exhibit a characteristic aging memory effect recording magnetic history. Reservoir computing (RC) is one of the machine learning frameworks suitable for time-series data processing represented by pattern recognition and enables high-speed learning. The learning ability depends on the nonlinearity and short-term memory (STM) capacity of the system. In terms of physical implementation, spintronic RCs has attracted attention because of the nonvolatile memory, small size, and low power consumption. Spin glasses are expected to exhibit excellent brain-type functionalities (short-term memory capacity) due to the slow magnetic dynamics, thus we quantitatively evaluated the STM capacity of spin glasses based on prevalent benchmarks. The results revealed that Co,Si-substituted Lu3Fe5O12 thin films exhibiting spin glass behavior show superior STM capacity compared to unsubstituted ferrimagnetic thin films. STM performance has been improved reflecting the time constant of magnetic relaxation reaching maximum near the spin freezing temperature, thus spin glass can be considered as possible candidates for RC with better performance. We also reported on the development of ultra-low power consumption devices using spin waves as an information media without heat loss. We demonstrated a reconfigurable logic gates, which is constructed by the garnet-type ferrimagnetic iron oxide Y3Fe5O12 with highly efficient spin wave propagation, using spin wave interference between magnetostatic surface waves and backward volume waves in addition to local external field control. We also demonstrated that, unlike conventional garnet-type oxides, spinel-type oxides, which have a relatively simple crystal structure and can be used for heterodevice applications, can propagate spin waves with high efficiency.

In the previous researches, to detect the interference gain of the spin-wave device, which required two signals in different phases to be provided to the two ports respectively, an external vector network analyzer (VNA) system is usually used. The use of such a system is both costly and bulky, making it impractical for portable integration. The primary goal of our research is to realize a highly power-efficient integrated device based on spin fluctuation. To achieve this goal, we are developing a high-sensitivity interface circuit for weak signal detection from spin-glass devices. The proposed spin-wave detection circuit system is composed of a phase-locked loop as a sinewave signal generator, a phase interpolator to tune the relative phase of the two stimulus signal to the spin-wave device, a low-noise amplifier to amplify the weak signal from the device, mixers to down-convert the signal frequency, and baseband amplifiers and filters to acquire the signal to be processed by a subsequent digital processor. We have developed these building blocks to compose the system and fabricated a chip for verification. Among them, the proposed inductorless cascaded PLL architecture features extremely low jitter and spur without using an on-chip inductor, which is sensitive to the external magnetic field. In addition, we have applied stochastic resonance, where the noise helps to improve the signal-to-noise ratio of nonlinear systems, to enhance the performance of the analog-to-digital converters. The analysis proves the meaningful performance improvement with proper intensity of noise.

As mentioned at the beginning of this article, the purpose of our study is to conduct design-driven material developments for materials which contribute to energy saving devices realizing a next generation AI society. We focus on spin glass systems with magnetic history. These materials have the potential to realize reservoir computing and Ising machines, and the controls of the spin coherence and spin freezing temperature are quite important. In particular, the spin glass materials with spin freezing temperatures much higher than room temperature are required when the social implementation is taken into consideration. The spin glass phenomenon originates from the randomness of the atoms and the magnetic frustration. We have targeted garnet-type ferrimagnetic iron oxides and magnetite doped with non-magnetic atoms to realize spin glass materials with high spin-freezing temperatures. The aim is to generate the magnetic frustration in the antiferromagnetic interactions of the strongly correlated oxides by the doping. However, in terms of the constituent elements and compositions, the materials space is so large that an experimental exhaustive search is extremely difficult. Therefore, it is important to develop a theoretical framework to predict the spin-freezing temperature with high speed and accuracy. We have developed a simulation program that can quantitatively evaluate the electronic structure and magnetic properties of the spin glass materials by combining first-principles calculations with statistical mechanics methods. The unique feature of this program is that it can describe the magnetic frustration and predict the spin-freezing temperature of the spin glass materials without using any empirical parameters. We have successfully estimated the spin-freezing temperatures of experimentally observed CuMn alloys with high accuracy. In addition, by investigating the chemical trend of the spin-freezing temperature of magnetite-based spin glass materials, we have proposed a guideline for realizing high spin-freezing temperatures and progressed.
